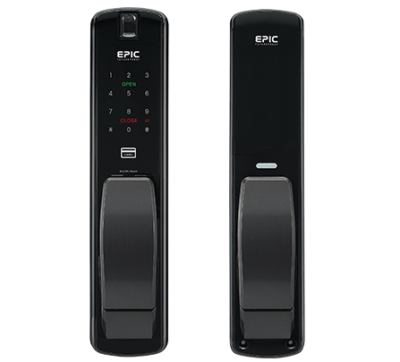

EF-P8800K
SPECIFICATIONS
Outer body (W x H x D mm) 85 x 376 x 75
Inner body (W x H x D mm) 85 x 376 x 74
Material Zn, Al, ABS
Applicable Door Thickness(mm) 40 ~ 50mm
Backset(mm) 70mm
Operation Humidity 10% ~ 90%
Operation Temperature -20℃ ~ 55℃
Fire Detection Temperature 60℃ ± 10℃
Power Supply DC 6V
(LR6 1.5V AA, 8 EA)
Emergency Power DC 9V
Battery life (10 times/1 day) 10 months
Fire Detection Temperature 62℃ ± 5℃
Power Supply DC 6V
(LR6 1.5V AA, 8 EA)
Emergency Power DC 9V
Battery life (10 times/1 day) 10 months
OTHER FUNCTION
Low Battery Warning ✓
1 Minute Lock Warning ✓
Deadbolt Operation Error Warning ✓
Intrusion Alarm ✓
High Temperatur Alarm ✓
Internal Forced is being enabled ✓
External Forced is being enabled –
Random Number Feature ✓
Checking The Duration Of Use ✓
Automatic Lock/Re-lock ✓
Locking from Outside/Inside ✓
Emergency Power Terminal ✓
